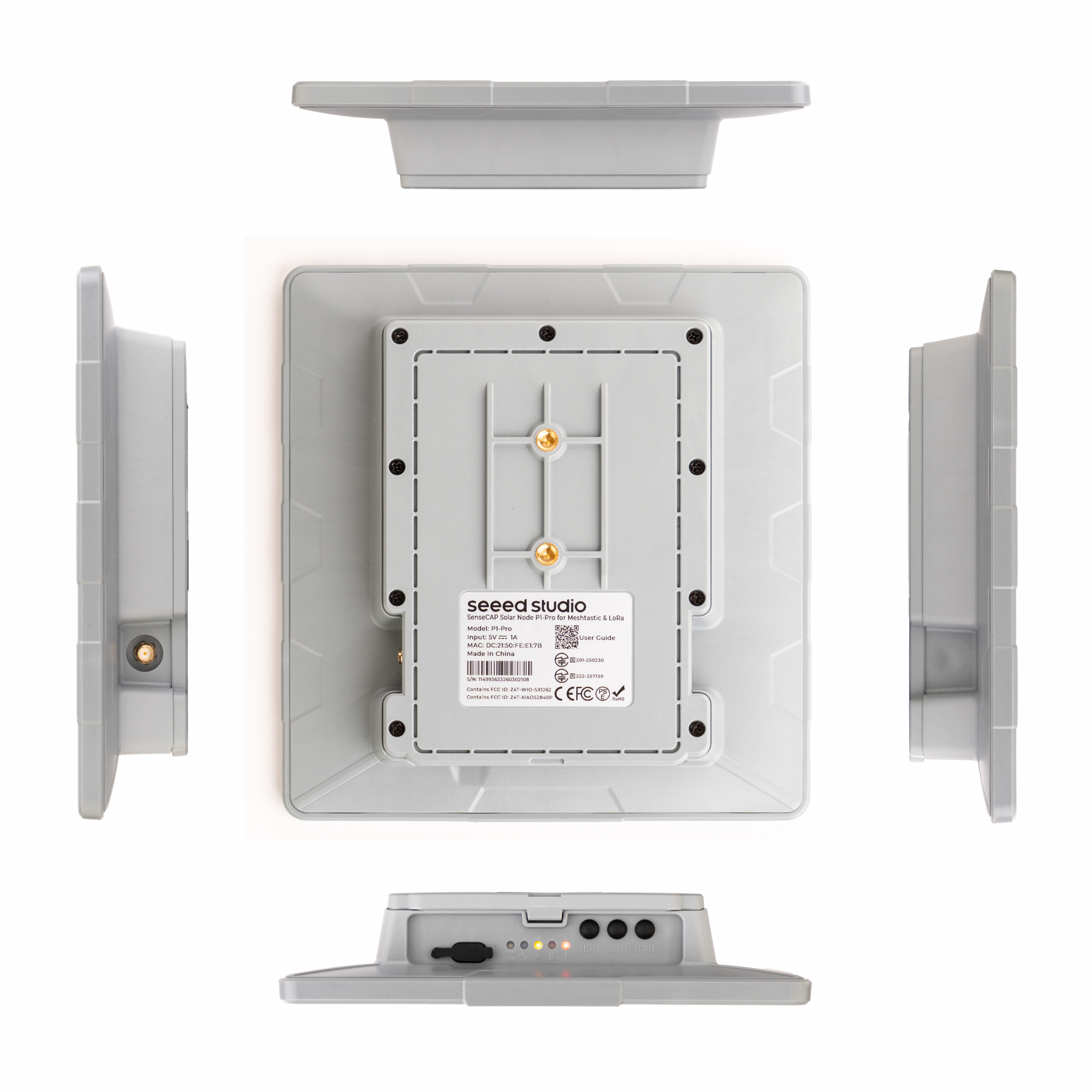

SenseCAP Solar Node P1-Pro

Stay connected off the grid with the SenseCAP Solar Node P1-Pro — a fully solar-powered Meshtastic/MeshCore node built for long-term outdoor deployment. Pre-flashed and ready to go right out of the box, this rugged node extends your mesh network's range and reliability with zero setup required.

Key Features

• Solar Powered: Integrated 5W solar panel with four 3,350mAh 18650 batteries for 24/7 operation with as little as one hour of sunlight per day.
• Built-In GPS: XIAO L76K module with GPS, GLONASS, and Galileo support for real-time positioning and timekeeping.
• Long Range: Up to 9km communication range in open areas.
• Pre-Flashed Firmware: Ships ready to use with your choice of Meshtastic or MeshCore firmware — no assembly, flashing, or configuration required.
• Bluetooth 5.0: Connect to the free Meshtastic or MeshCore app on your phone, or deploy as a standalone repeater.
• Low Power Design: nRF52840 processor optimized for maximum energy efficiency.

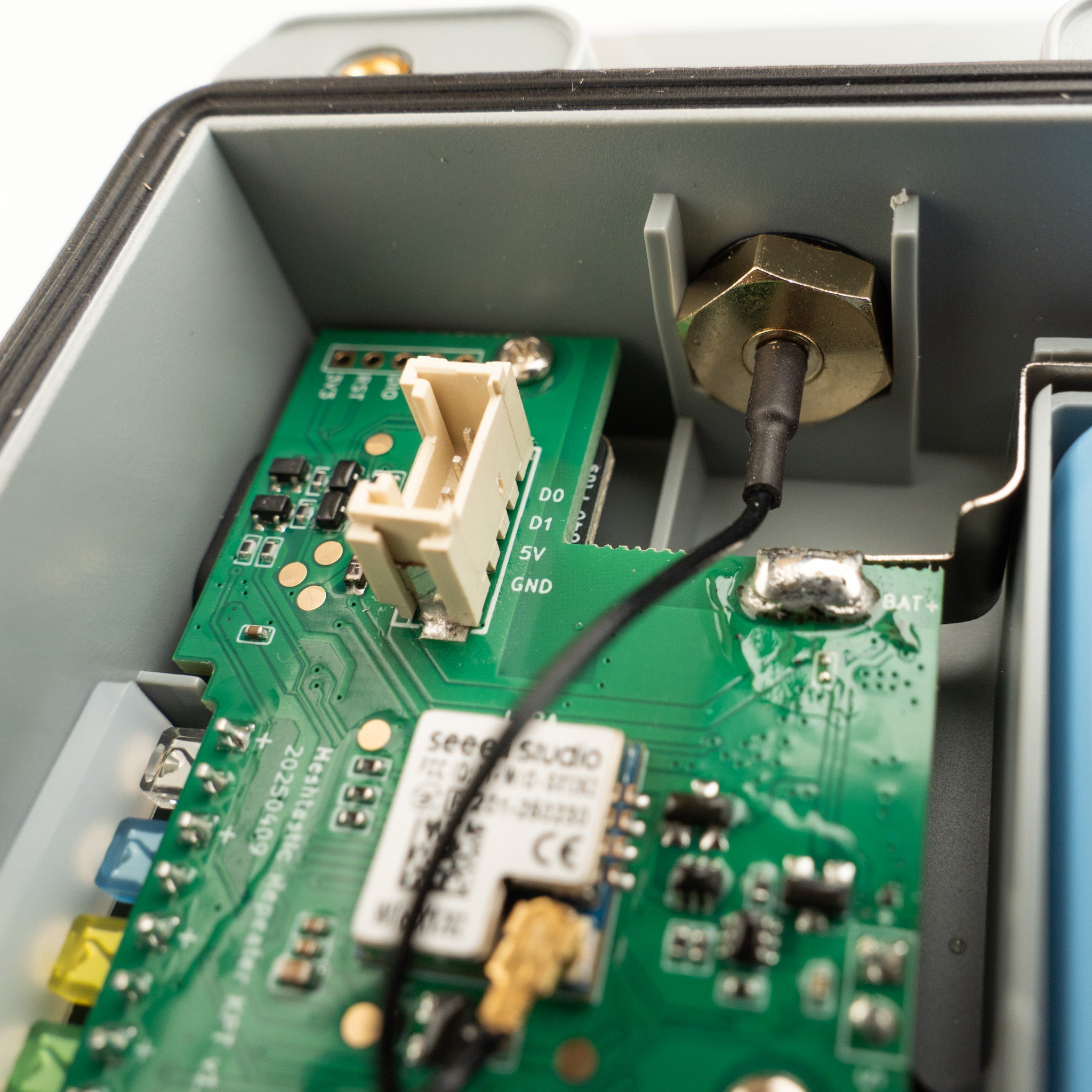

• Expandable: Grove port (I2C/GPIO) for plug-and-play environmental sensor modules (temperature, humidity, air quality).

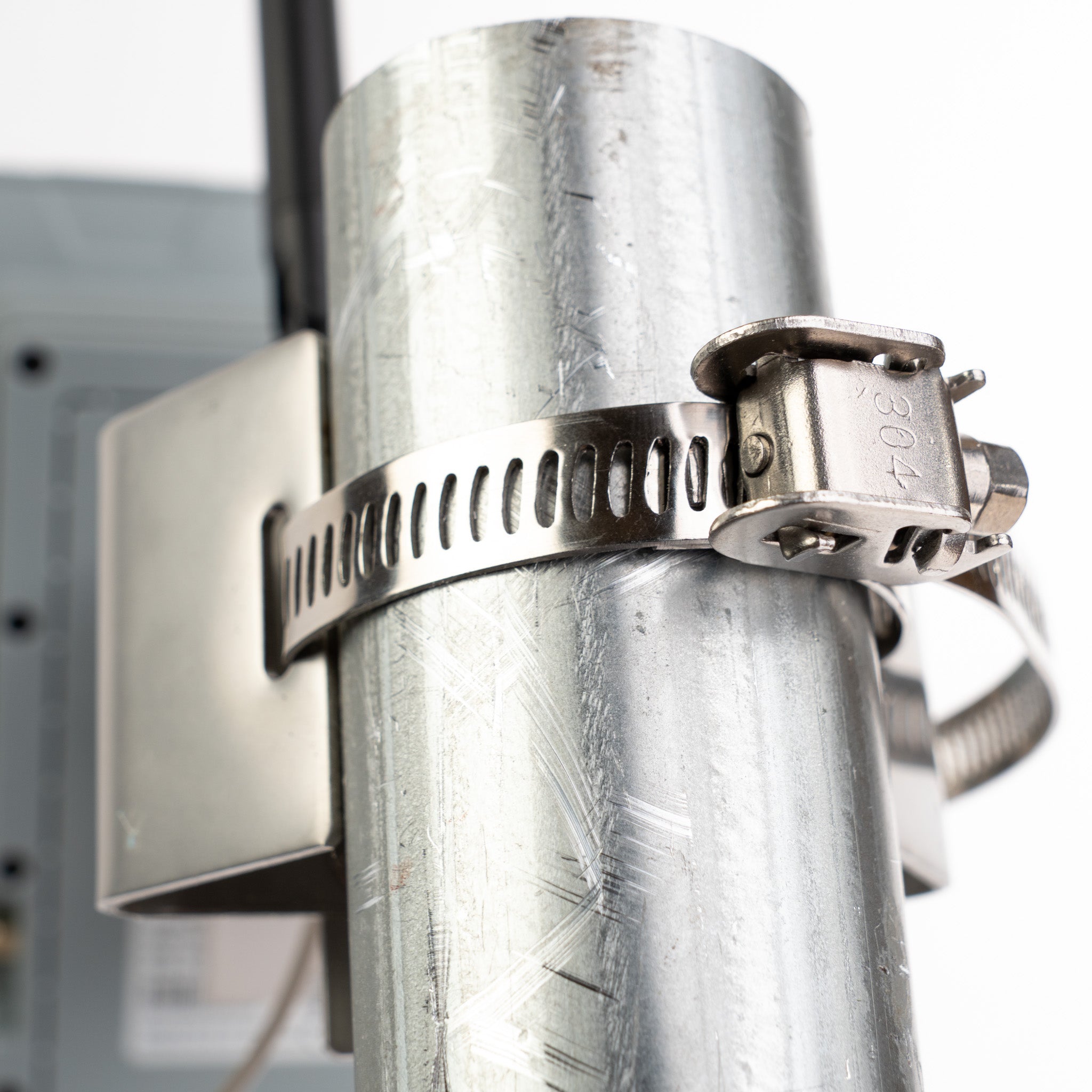

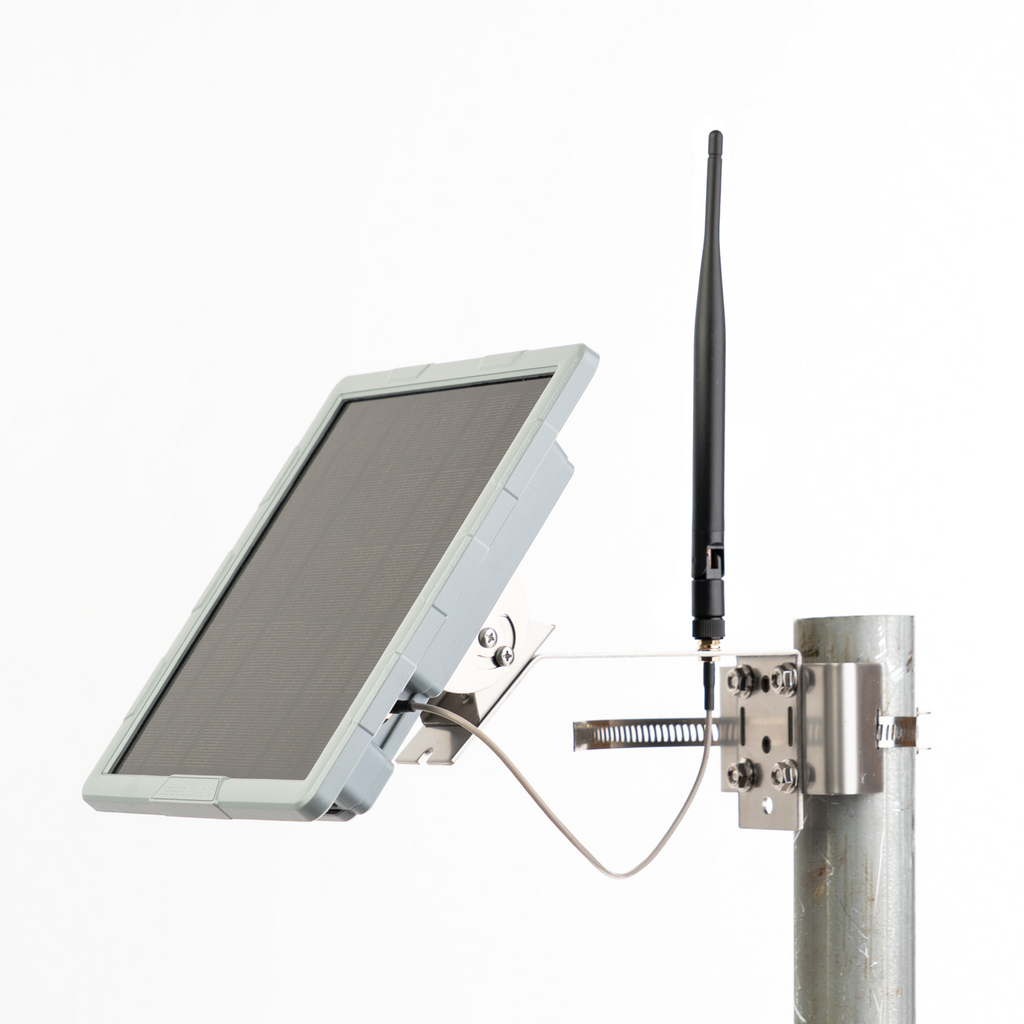

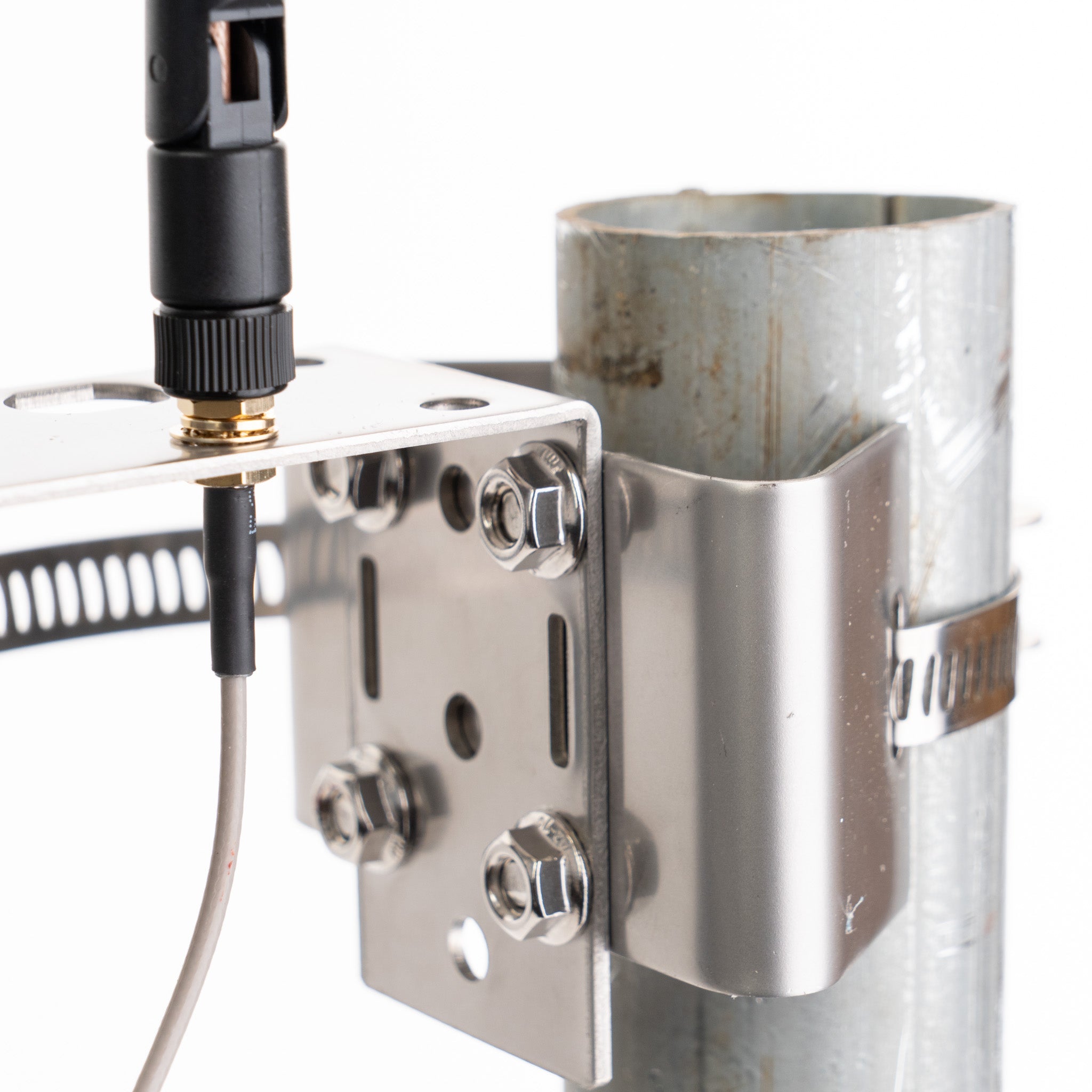

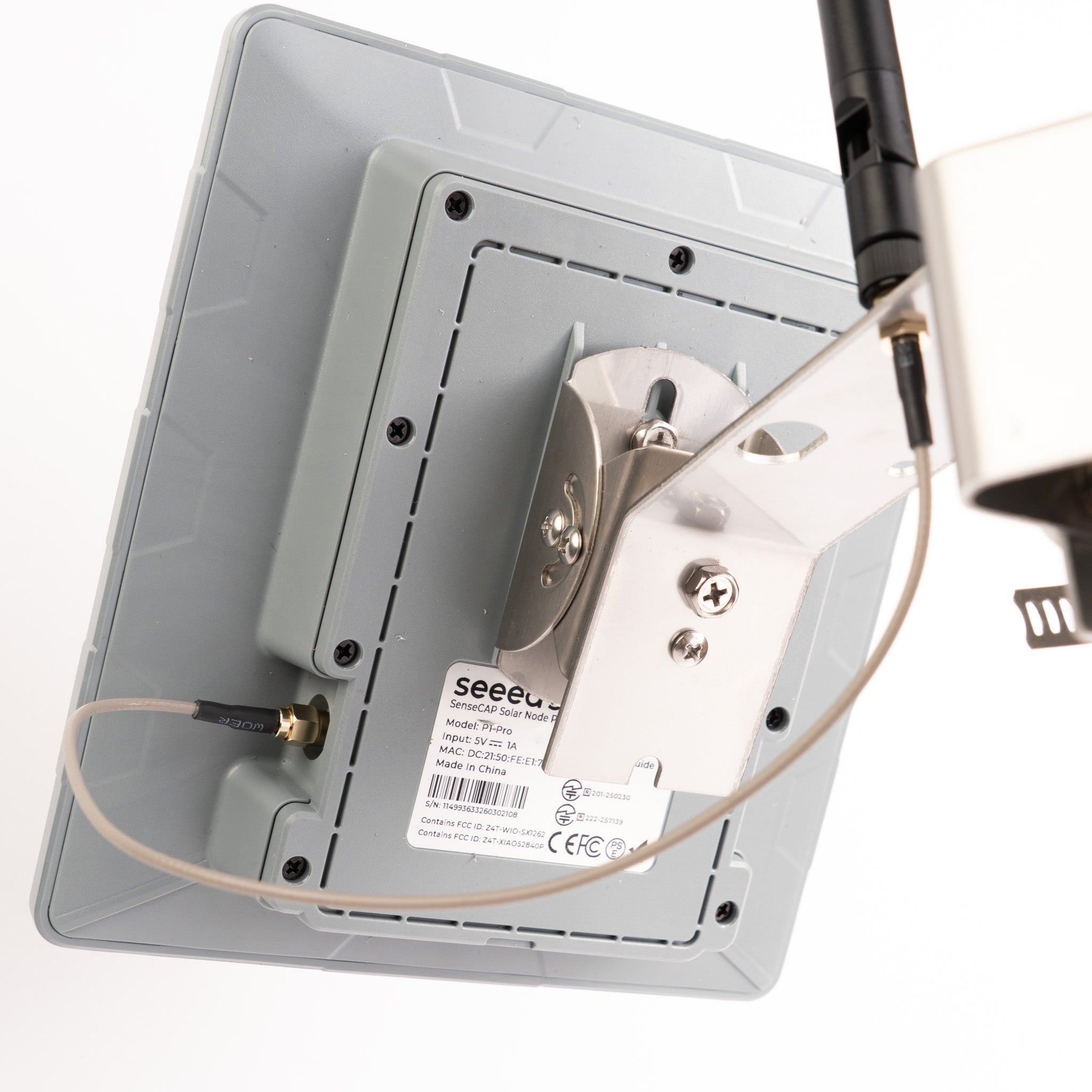

• Outdoor Rated: Includes pole and wall mounting brackets for flexible deployment.

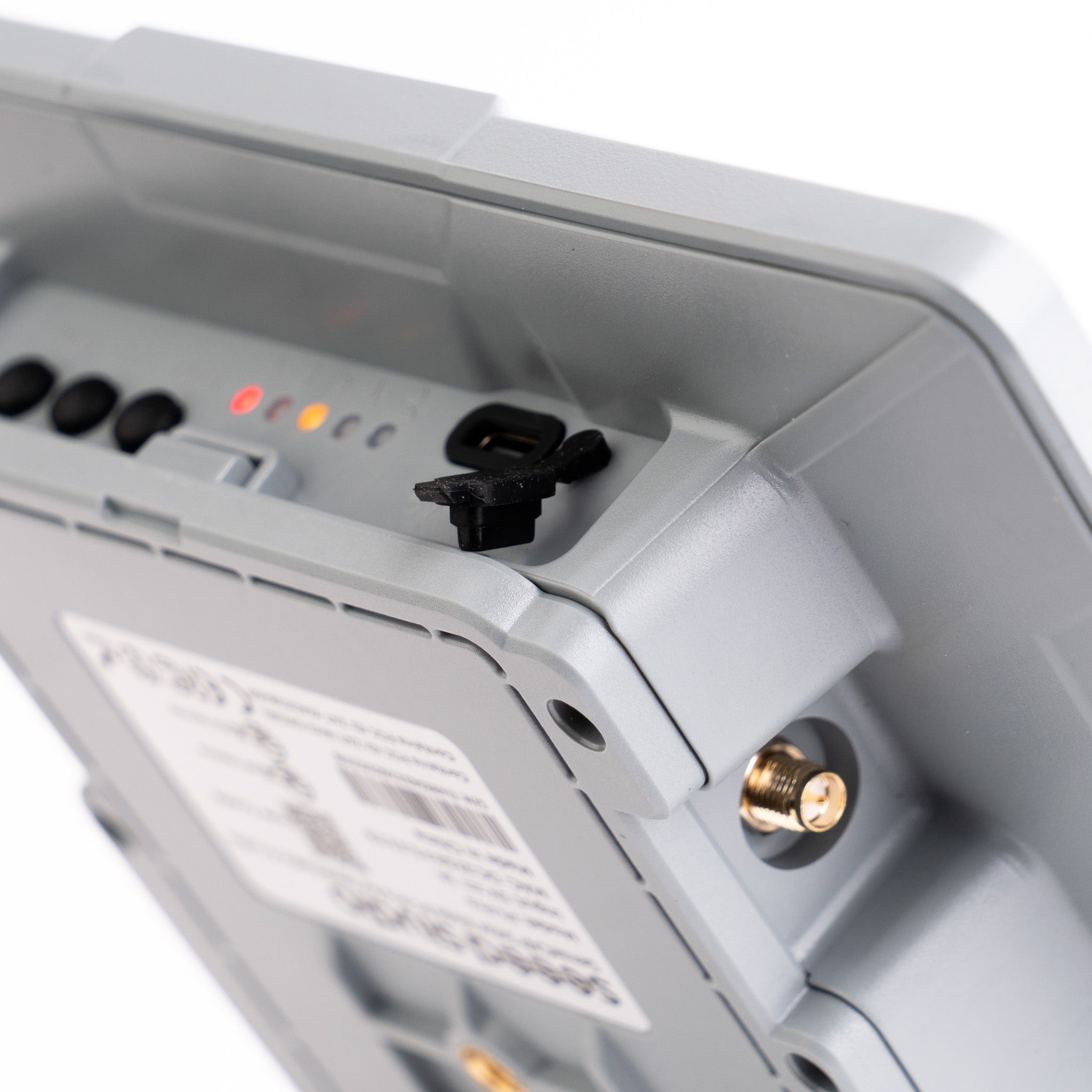

• USB-C Charging: Charge via solar or USB-C when not deployed in the field.
• FCC & CE Certified

Specifications

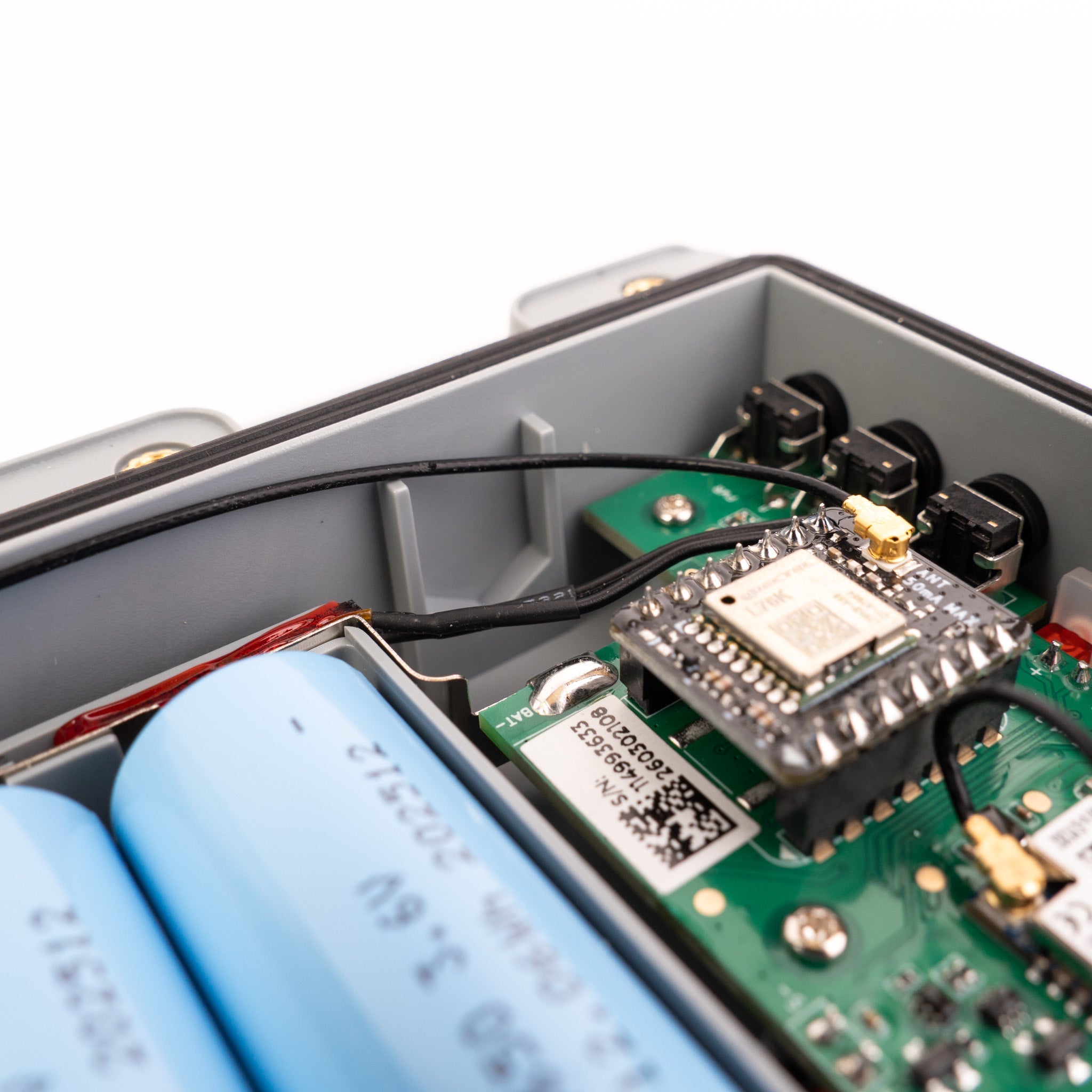

• Main Controller: XIAO nRF52840 Plus (ARM Cortex-M4, 64MHz)
• LoRa Module: Wio-SX1262 (Semtech SX1262)
• TX Power: Up to +22 dBm
• Frequency Range: 862–930 MHz

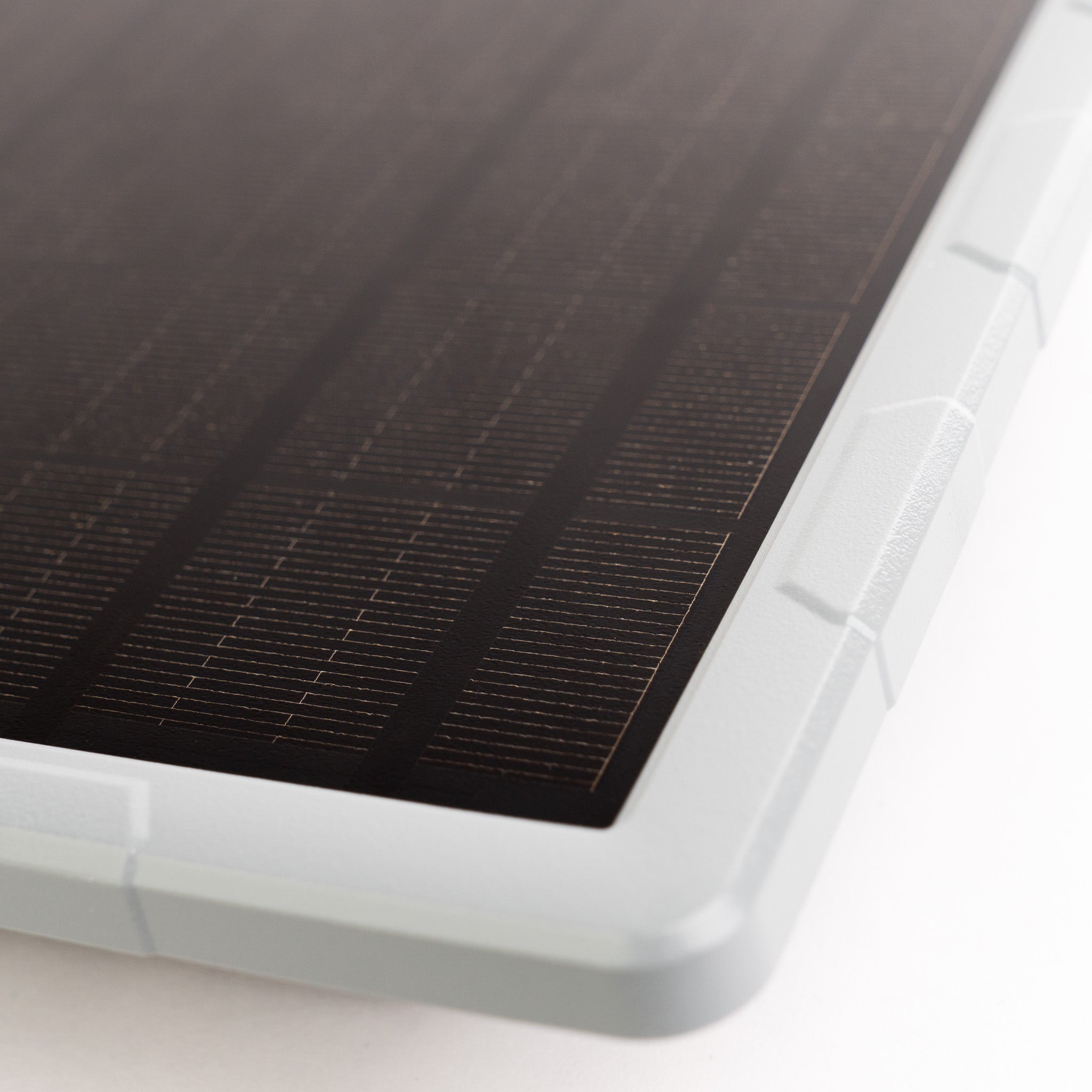

• Solar Panel: 5W integrated

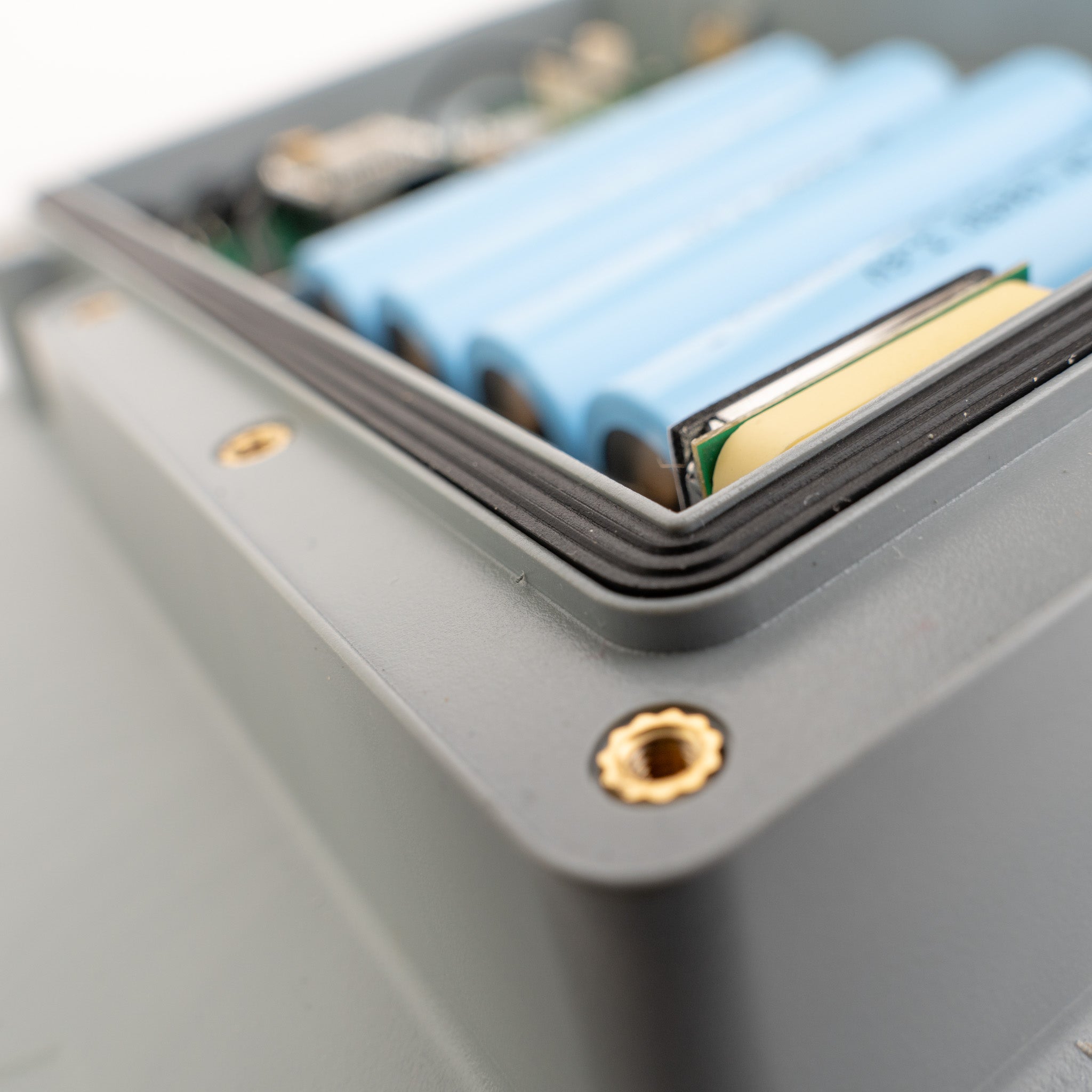

• Battery: 4× 18650 lithium-ion (3,350mAh each)
• Connectivity: Bluetooth 5.0, USB-C
• Operating Temp: -40°C to 60°C

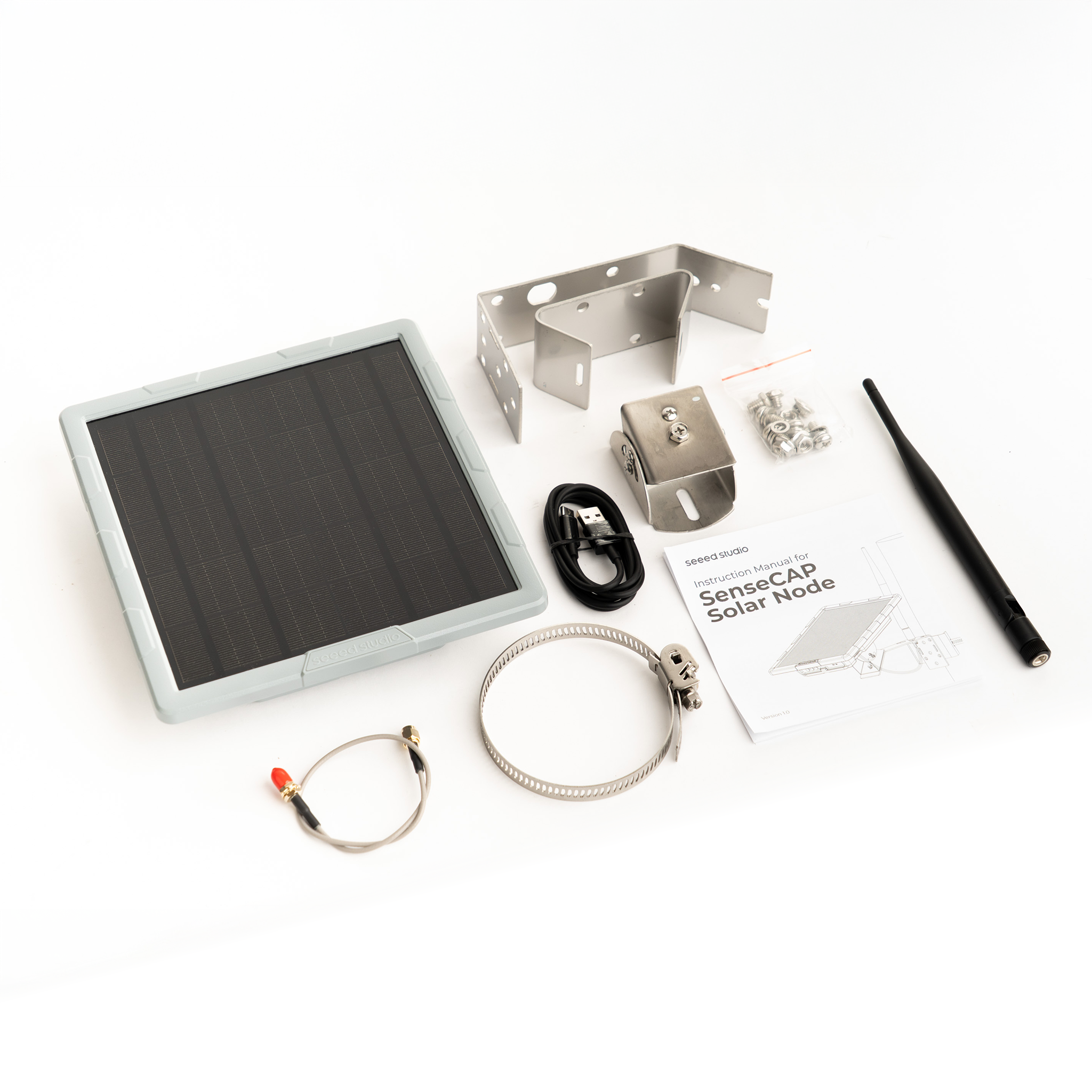

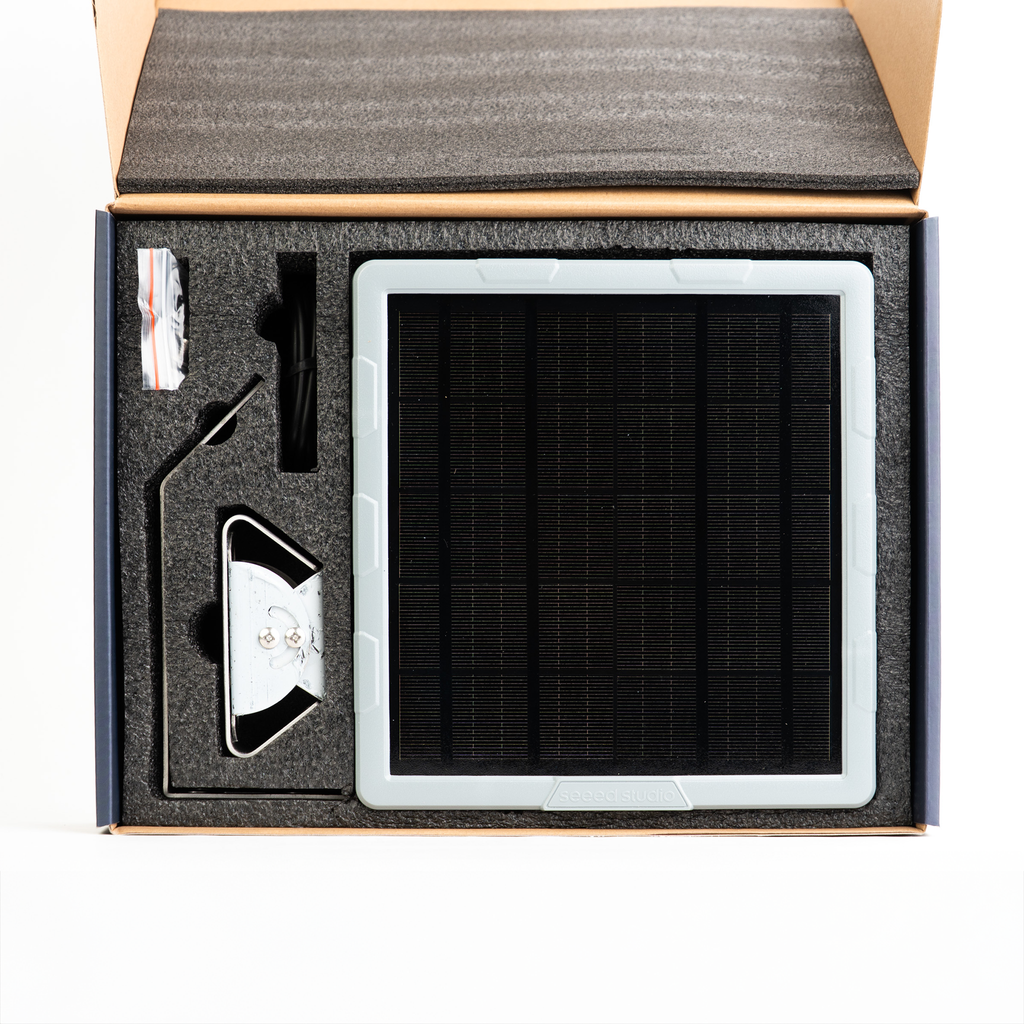

What's in the Box

• SenseCAP Solar Node P1-Pro

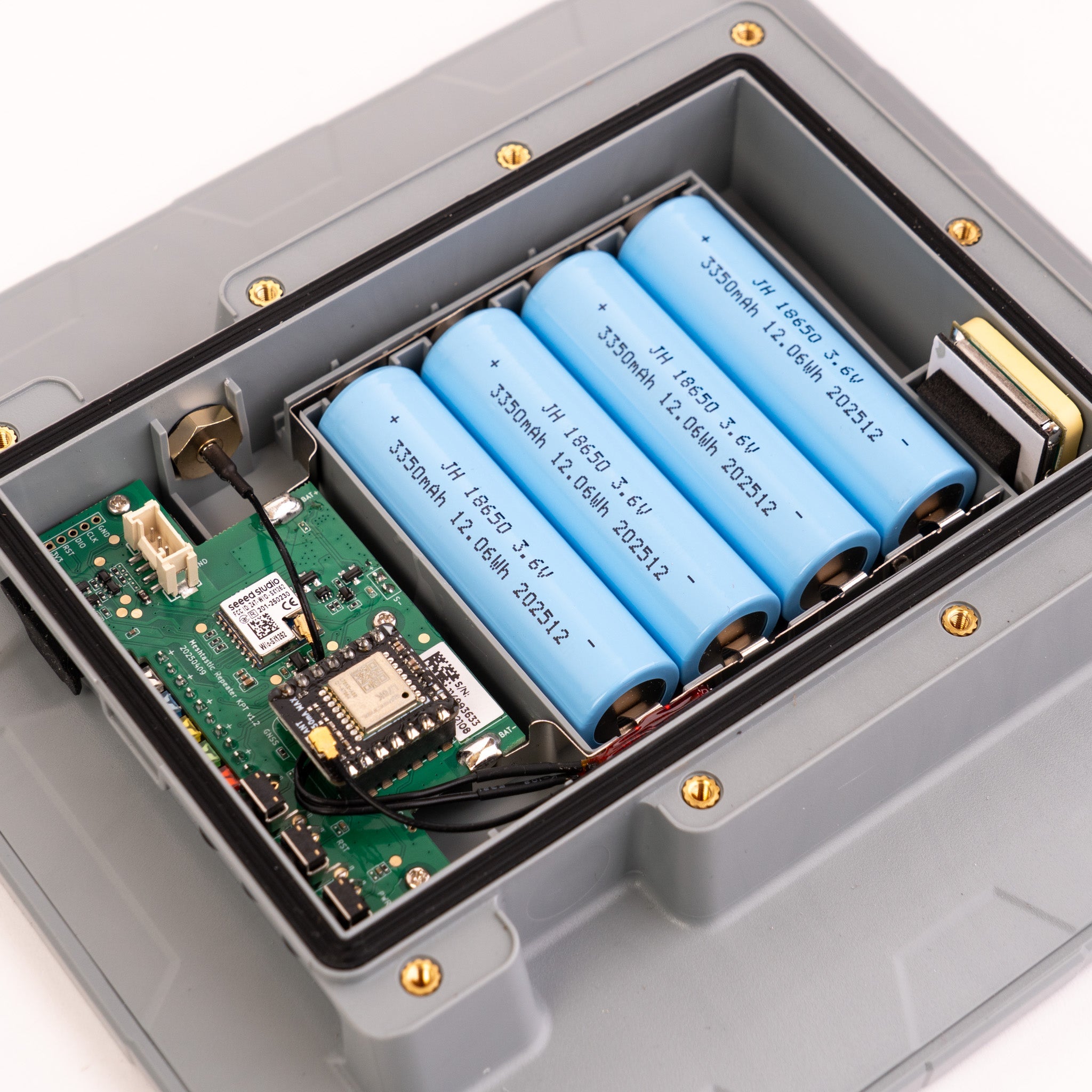

• 4× 18650 batteries (pre-installed)

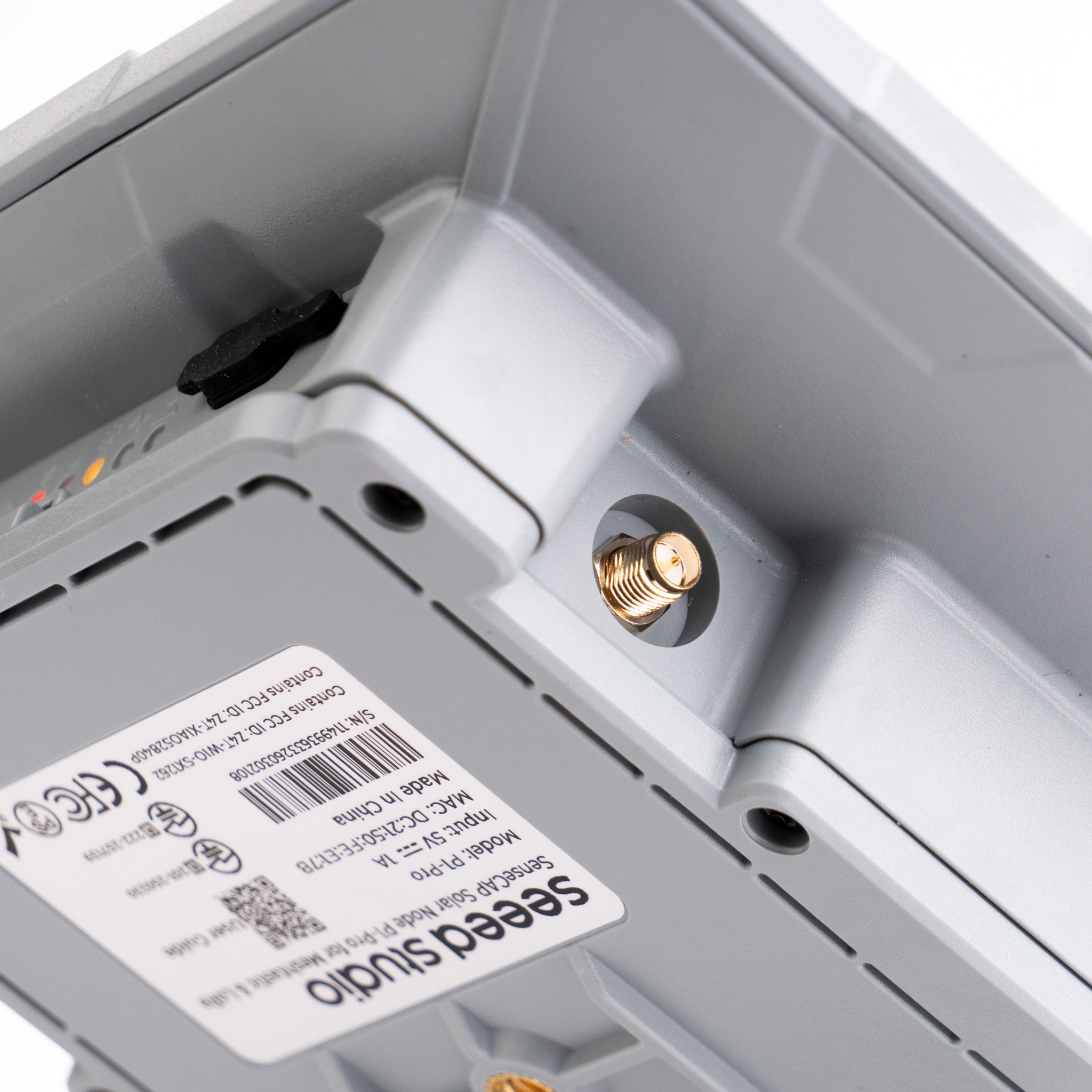

• RP-SMA antenna
• Antenna cable

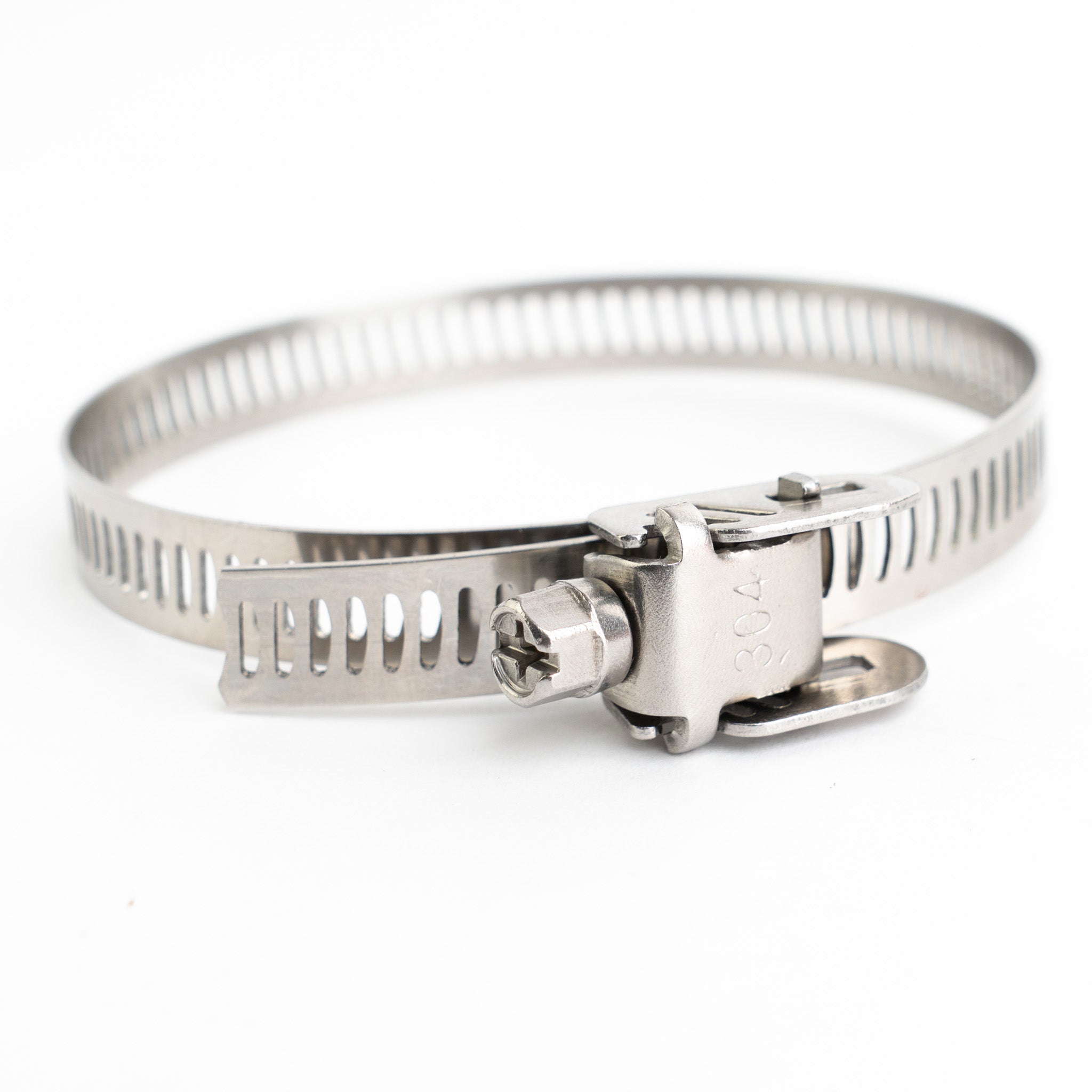

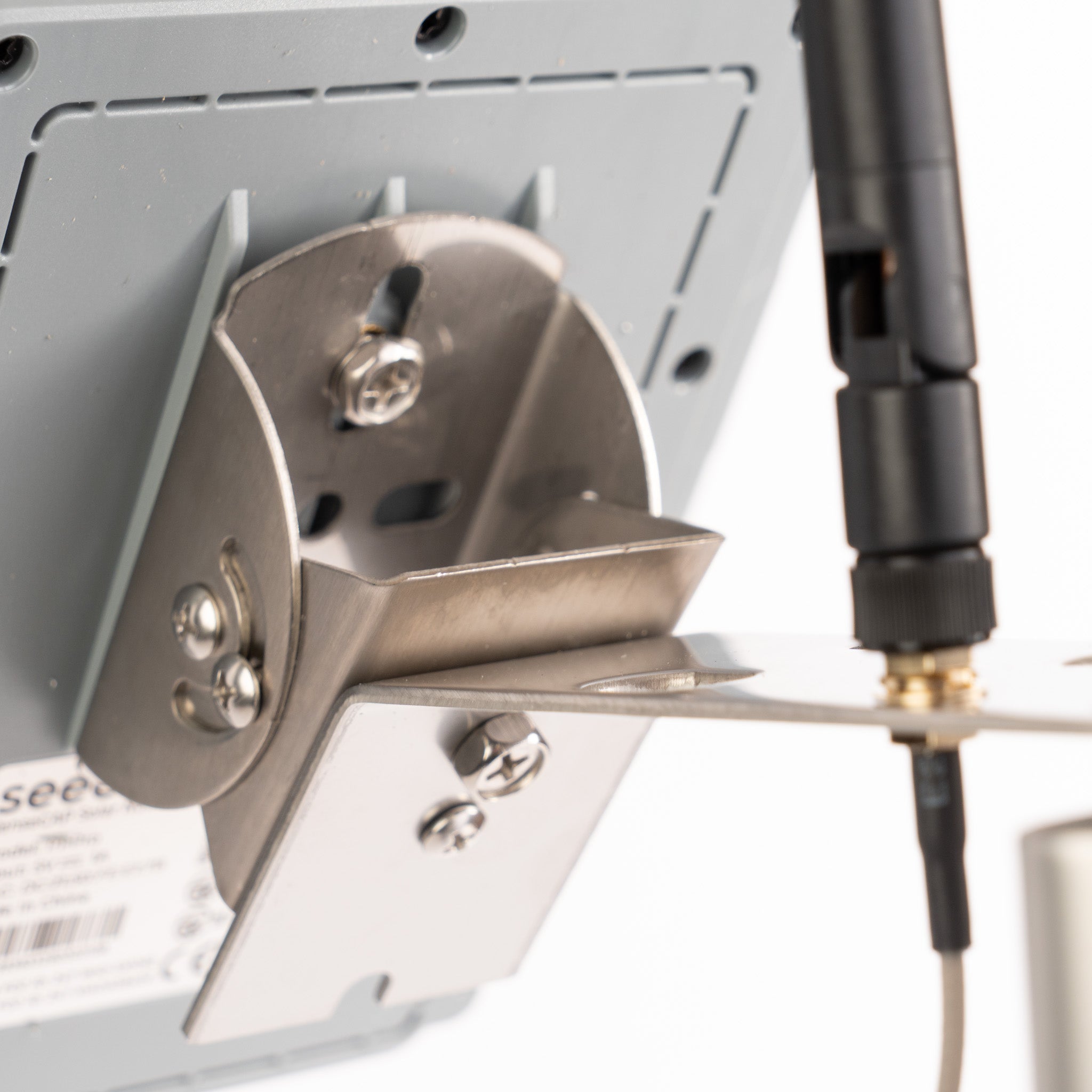

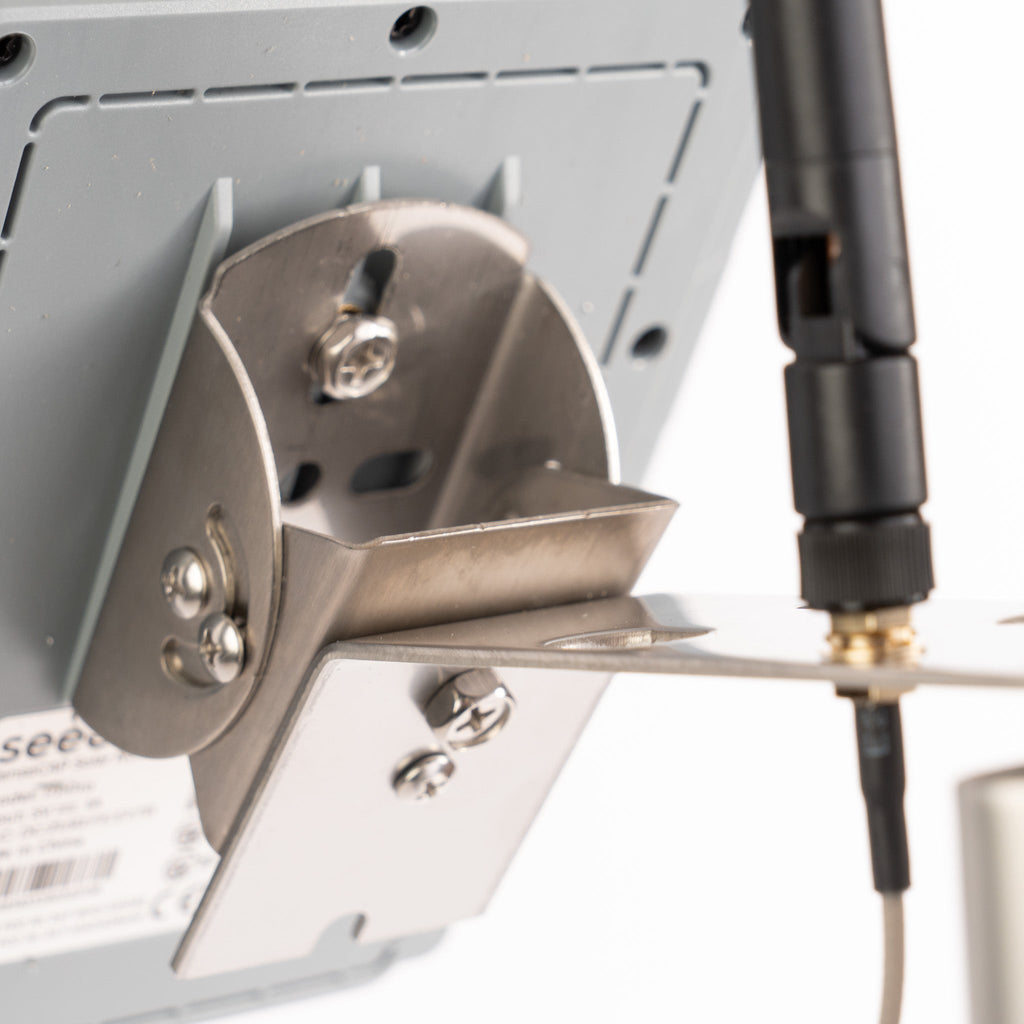

• Pole and wall mounting brackets and hardware
• USB-C cable

Use Cases

• Mesh network expansion and repeater deployment
• Off-grid communication in remote areas
• Outdoor GPS tracking for farms, parks, and trails
• Environmental monitoring with Grove sensors
• Emergency preparedness and disaster response

Shipped pre-configured by Atlavox — just mount it, point it at the sky, and let it run.
